PCC
Solid Blocks
| Sizes | Length (mm) | Width (mm) | Height (mm) | Strength (N/mm2) | Weight (kg) |
|---|---|---|---|---|---|
|
4" |
400 |
100 |
200 |
5-10 |
16 |
|
6" |
400 |
150 |
200 |
5-10 |
24 |
|
8" |
400 |
200 |
200 |
5-10 |
16 |

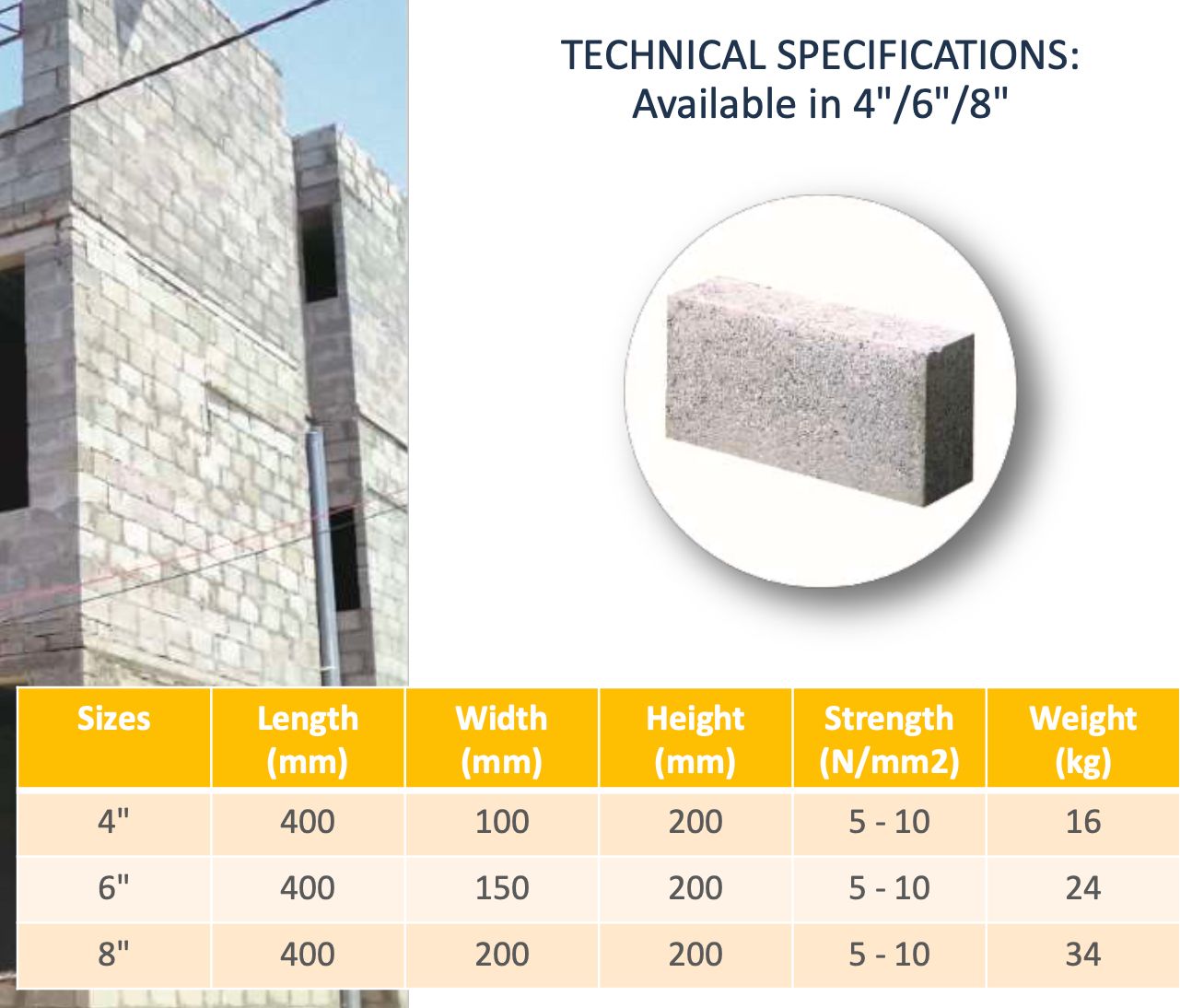

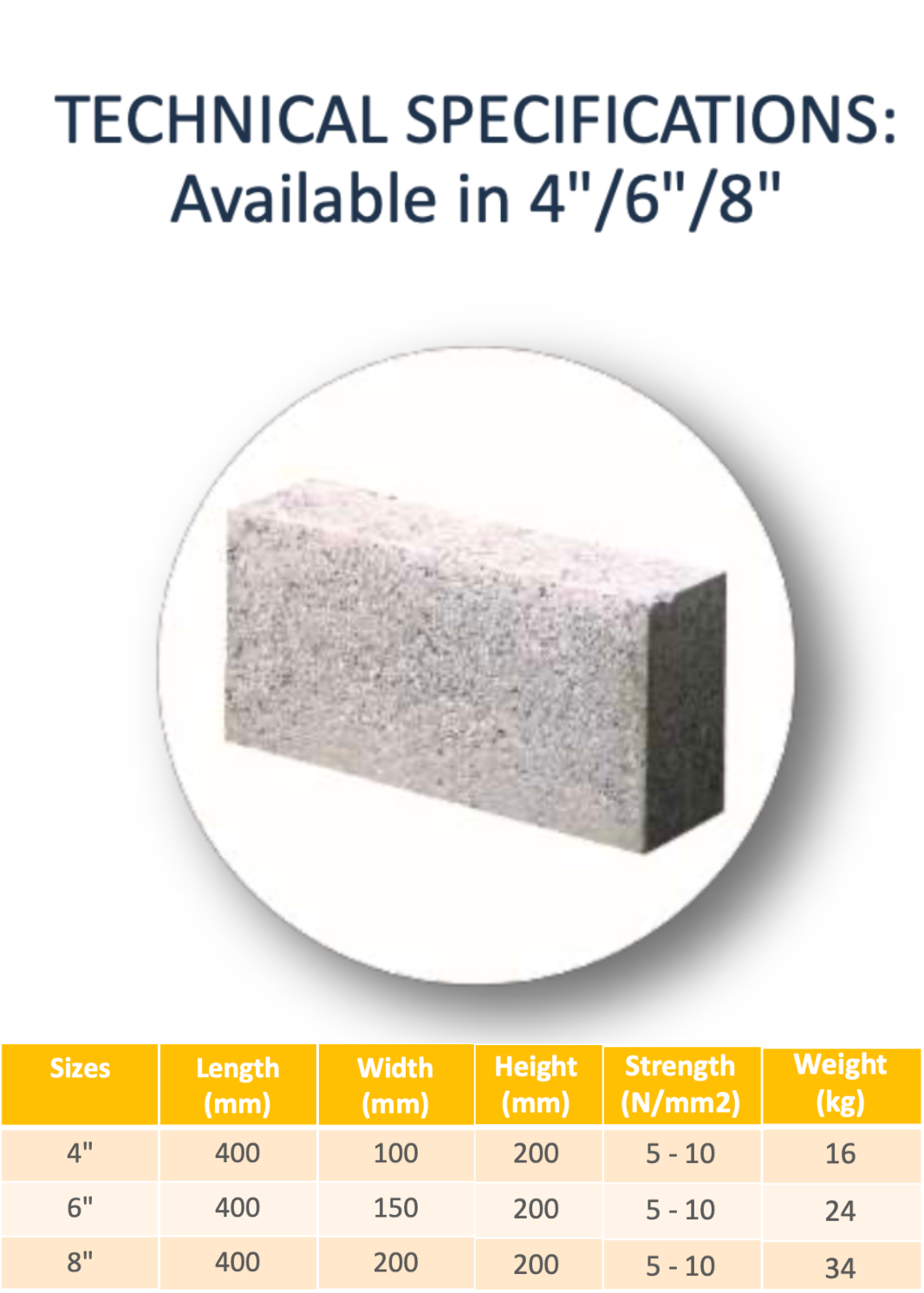

Solid Blocks - Technical Specifications
Solid blocks used in construction, with a background of an under-construction building made of these blocks.
Product Specifications:
- Available Sizes: 4", 6", and 8"
- Length: 400 mm (consistent across all sizes)
- Width:
- 4" block: 100 mm
- 6" block: 150 mm
- 8" block: 200 mm
- Height: 200 mm (for all sizes)
- Strength: 5-10 N/mm²
- Weight:
- 4" block: 16 kg
- 6" block: 24 kg
- 8" block: 34 kg
The design features a table with specifications highlighting the different sizes and physical properties of the solid blocks. The header is styled in a gradient orange shade with "SOLID BLOCKS" prominently displayed. A high-resolution image of a solid block is placed in a circular frame to visually represent the product.
